Dynamica SUPERIOR D

Offering greater safety

The Dynamica SUPERIOR D is a 12 strand braided rope made with HMPE/Dyneema®. Offering you greater safety by combining the well-known Dynamica SK78 and overbraided Dyneema® cover.

SUPERIOR

Technical information

Rope materialHMPE/Dyneema ®
Cover materialHMPE/Dyneema ®
CoreWith or without
DiameterUp to 120 mm
Breaking strengthUp to 800 t
Construction12 strand braided, rotation free
Hand friendlyLightweight, easy to handle
Buoyancy0.98
UV stabilityVery good
CreepLow
Chemical resistanceVery good
Abrasion resistanceExtremely good
Melting point144 - 152° C
Max. work temp.60 - 65° C
Combined Shape

Need a datasheet?

Go to solution request and fill in your details

Solution Request

Features

  • Strong as steel
  • 10 times lighter than steel
  • 3-4 % elongation
  • Low creep

Applications

  • Maritime
  • On- & Offshore Wind
Discover more

Sections

Why choose Dynamica SUPERIOR D?

If your operation requires a rope with greater abrasion protection or the rope moves over sheaves or winch drums.

Dynamica SUPERIOR D is manufactured with Dynamica SK78 rope and an overbraided cover made with HMPE/Dyneema® fibers. This combination gives greater protection from abrasion while ensuring no backlash in case of rupture which means a safer working environment.

What is the breaking strength & weight of SUPERIOR D?

SUPERIOR D ropes are made with a Dynamica SK78 rope and a overbraided cover made with HMPE/Dyneema® fibers. The use of the SK78 rope makes the SUPERIOR D just as strong as steel wire rope while being up to 10 times lighter.

By choosing Dynamica SUPERIOR D instead of steel wire, you gain:

  • Easier rigging

  • Decrease in handling speed

  • Less resources required

  • Fewer riggers and less equipment required

  • Overall cost-savings

Interested in a specific diameter, breaking strength and weight? Request the information through the solution request!

Solution Request

What is the elongation of Dynamica SUPERIOR D?

SUPERIOR D ropes have low elongation similar to steel while being a safer alternative.

The ropes’ cover, low mass and elongation results in the energy being distributed along the rope’s entire length in a linear way with a no recoil - the cover prevents the rope from lashing out unlike steel wire which is known for lashing out endangering riggers and equipment.

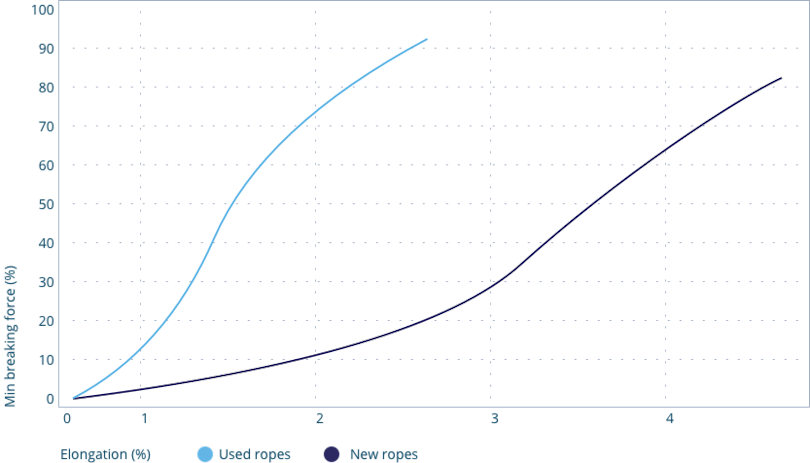

Elongation table

Is Dynamica SUPERIOR D rotation free?

Yes, SUPERIOR D has a torque-neutral construction, which means that “snaking”, bird caging and kinking is not an issue, which is a common problem with steel wire ropes.

Do & don’t

Do not use the SUPERIOR D ropes over sharp edges or rusty surfaces as this can lead to cuts, abrasion abuse and splice damages. To attain long service life and protect the riggers, ensure all surfaces are in proper condition.

How to cover & protect the SUPERIOR D?

Want longer service life? Protect your rope with a cover!

Dynamica SUPERIOR D is already fitted with a Dynamica PRO cover ensuring greater abrasion resistance and longer service life.

What to look for while inspecting the SUPERIOR D?

Regular inspections ensure longer service life and keep the costs of ownership down. Inspect your Dynamica SUPERIOR D before every operation look for signs of:

  • Rope construction damage

  • Cover damage

  • Abrasion

  • Inconsistent diameter

88mm rope grommets with thimbles

SPM hawsers made with dyneema® - a robust solution for offshore monsoons

Breakages in Single Point Mooring (SPM) hawsers during turbulent conditions can result in catastrophic consequences, including equipment damage, production shutdowns, or even environmental hazards. This is how were manufactured and delivered in just a few days, demonstrating the importance of fast, reliable solutions in critical offshore applications.

Read more

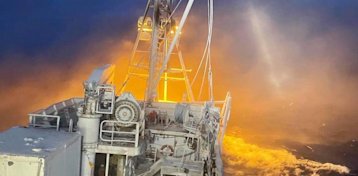

Fiskeri Winch Maritime
