- Pull-in improvement for Chestnut Oil Field
FPSO flexible pull-in winch rope
Our customer needed a safe and lightweight pull-in winch rope for pulling of flexible through the J-tube. The operation secured the end-fitting was fastened to the latching device.

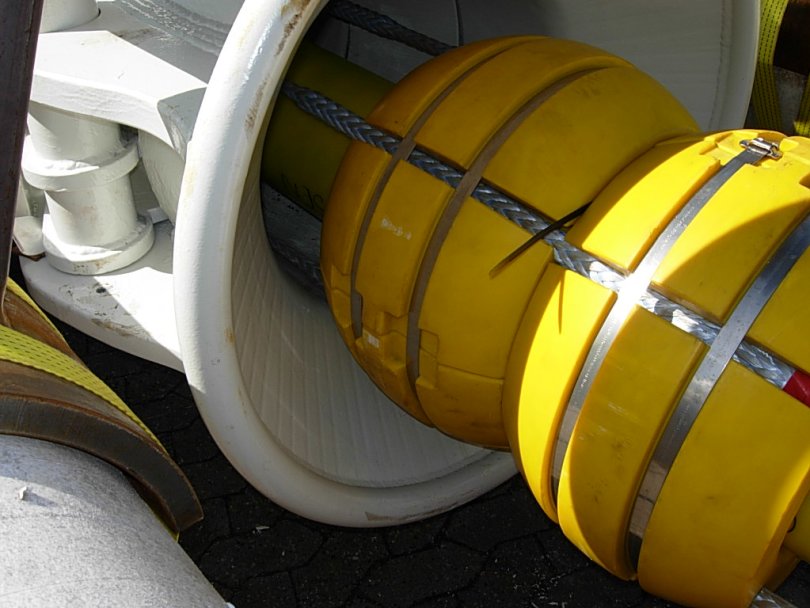

A similar pull-in rope system used on Maari Oil Field Project south of Taranaki, New Zealand, was not protected sufficiently from abrasion and hence needed further development and why we were contacted.
![pull-in rope system for maari oil field project](https://images.ctfassets.net/q6qgec8ud5tq/3lmvhDPE14uKk0NeWl4DsR/78f0671fc0ba5a42ccce481019d1d0e8/Billede_086.jpg?fit=thumb&w=810&q=85)
The challenge was to manufacture a winch rope with exact length and overall diameter as there were only a few mm allowance in the system.
We designed and developed a better solution for the centraliser pulling system; a pull-in winch rope with 37 t raw strength that only weighed 300 g/m.
We analysed the old sample in order to design and engineer this solution. The new winch rope was Proof Loaded in our in-house Test Bed in order to assure stable length, controlled elongation of the system and most important; exact diameter of the rope. By the end of the design process, the suitable protection was chosen and tested again.
“The best choice for this challenging job was Dynamica J-tube line made with SUPERIOR D as this has the best protection of the load bearing core. SUPERIOR D consists of SK78 rope and Dyneema® cover which abrasion resistance is superior to any other man-made fibre meaning that it eliminates risk of rope failure during the operation.”
Kate Christensen, Sales Manager at Dynamica Ropes

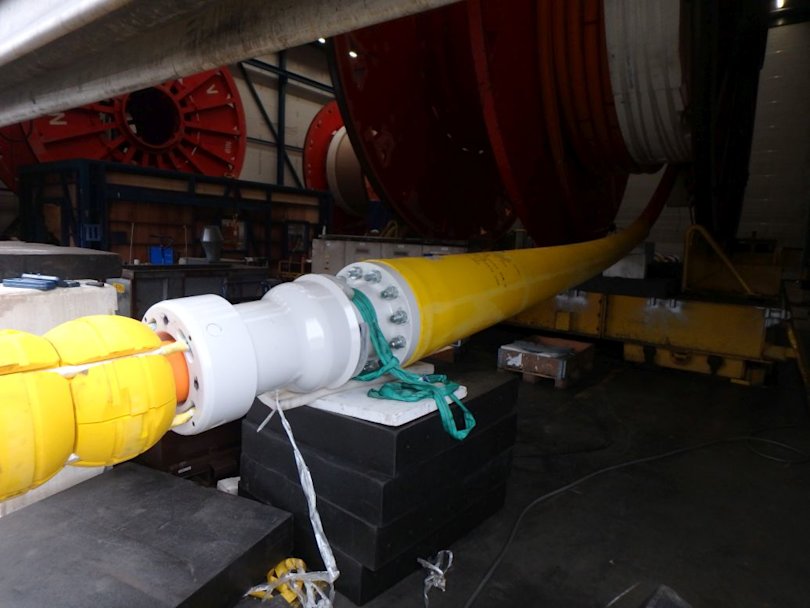

The pull-in was done in a precise manner as Dynamica rope system pulled the flexible through the centraliser.
![Dynamica rope system](https://images.ctfassets.net/q6qgec8ud5tq/1f0IP0Zcny1Q8WgrjtBnfi/392487f278c04c3478df9f3242869a93/PA290145.jpg?fit=thumb&w=810&q=85)
”We are happy to work with you because of your flexibility and innovative approach”
Ole, Senior Engineer at NOV
Dynamica J-tube line / Pull-in winch rope
Precise length
Precise diameter to fit the system
Controlled elongation behaviour
37 t pulling force
