Dynamica SK78

Light, strong & low creep

Dynamica SK78 is 12 strand braided rope produced with HMPE/Dyneema®. DNV type approved product, always in stock used in advanced On- & Offshore operations e.g., where tension for long periods of time are characteristics.

rope texture

Technical information

Rope materialHMPE/Dyneema ®
DiameterUp to 200 mm
Breaking strengthUp to 2500 t
Construction12 strand braided, rotation free
Hand friendlyLow weight, easy to handle
Buoyancy0,98
UV stabilityVery good
CreepLower creep than SK75
Chemical resistance.Very good
Abrasion resistanceExtremely good
Melting point144 - 152° C
Max. work temp.60 - 65° C
Combined Shape

Need a datasheet?

Go to solution request and fill in your details

Solution Request

Features

  • Strong as steel
  • 10 times lighter than steel
  • 3-4 % elongation
  • Low creep

Applications

  • Heavy Lifting
  • On- & Offshore WInd
  • Maritime
  • Aquaculture & Fishing
Discover more

Sections

Why choose Dynamica SK78?

If your operation requires a strong and light rope for a standard application.

Dynamica SK78 is a part of our standard range of ropes produced with HMPE/Dyneema®. It is a versatile rope used in many different industries and applications.

If you need a rope with lower creep, choose Dynamica DM20.

If you need a rope with higher strength, choose Dynamica SK99.

What is the breaking strength & weight of Dynamica SK78?

Dynamica SK78 is just as strong as steel wire rope while being up to 10 times lighter. By shifting from steel to SK78 you gain:

  • Easier rigging

  • Decrease in handling speed

  • Less resources required

  • Fewer riggers and less equipment required

Interested in a specific diameter, breaking strength and weight? Request the information through the solution request!

Solution Request

What is the elongation of Dynamica SK78?

Dynamica SK78 ropes are not only strong and light, but also have low elongation and low creep making it a safe alternative to steel wire.

In case of overload and break, SK78 ropes’ low mass and elongation results in the energy being distributed along the rope’s entire length in a linear fashion with a relatively low recoil. Whereas, steel wire is known for lashing out endangering riggers and equipment.

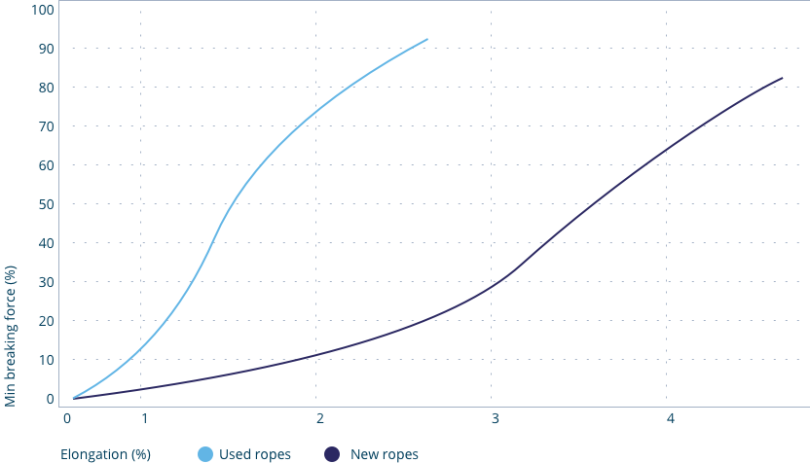

Elongation table

Is Dynamica SK78 rotation free?

Yes, Dynamica SK78 has a torque-neutral construction, which means that “snaking”, bird caging and kinking is not an issue, which is a common problem with steel wire ropes.

Do & don’t

Do not use your Dynamica SK78 over rusty surfaces and sharp edges as this can lead to cuts, abrasion rope abuse and splice damages. To attain long service life ensure all surfaces are in proper condition.

How to cover & protect SK78 ropes?

Want longer service life? Protect your rope with a cover!

With a cover Dynamica SK78 ropes become even more abrasion resistant. We recommend that Dynamica SK78 is always covered in the eyes and other bearing points. For some operations, we recommend a cover on rope’s entire length.

The cover can be braided or woven made of Cordura, Polyester or Dyneema®.

We advise you on the choice of cover for your SK78 rope.

What to look for while inspecting Dynamica SK78?

Dynamica SK78 ropes should be inspected frequently in order to ensure a safe use and long service life. During an inspection always look for signs of:

  • Rope construction damage

  • Cover damage

  • Abrasion

  • Inconsistent diameter

DNV TYPE APPROVED PRODUCT
